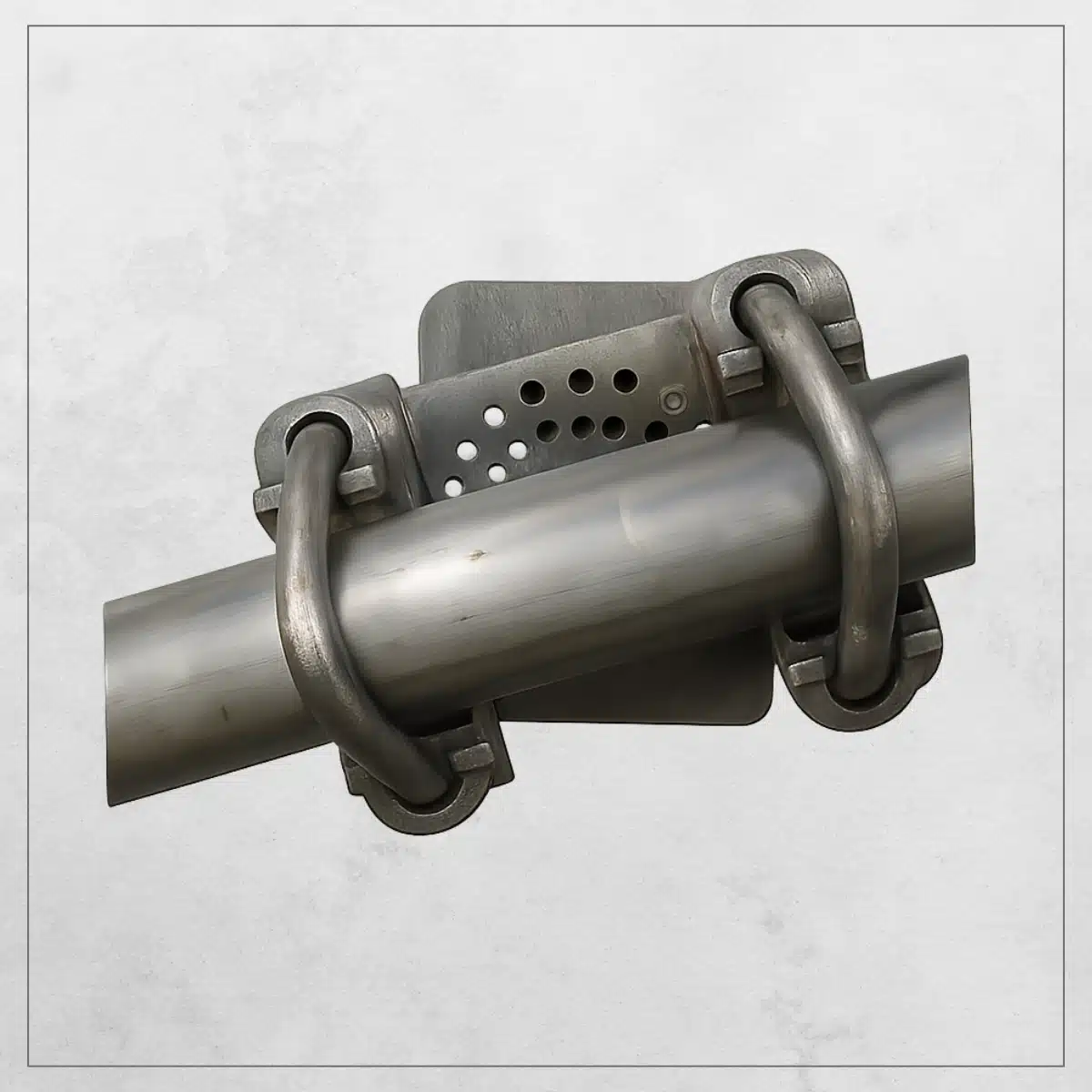

AM-2 Adjustable Mount
The AM-2 Adjustable Mount is a rugged UHF SATCOM Antenna mount designed for mast diameters ranging from 2.875″ to 4″, it features a fixed 2 degree elevation angle to support optimal antenna positioning.
Description
The AM-2 Adjustable Mount is a heavy-duty solution for securely installing TACO’s fixed UHF SATCOM antennas in permanent communication setups. Designed for mast diameters ranging from 2.875″ to 4″, it features a fixed 2-degree elevation angle to support optimal antenna positioning. Constructed for durability and long-term performance, the AM-2 offers superior resistance to environmental stressors such as wind, temperature extremes, and corrosion. Its rugged, precision-engineered design ensures reliable antenna alignment and structural integrity, making it an ideal choice for mission-critical and field-deployed systems.
| General Specifications | |
|---|---|
| Model Name | AM-2 Mount |
| Part Number | 17509501 |
| Compliances | RoHS, REACH |
| Mechanical Specifications | |
| Weight - lbs (kg) | 48.2 (21.9) |
| Azimuth Rotation (°) | 360 |
| Elevation Rotation (°) | 360° in fixed 2° increments |
| Mounting Specifications | |
| Mount Type | Adjustable Mast |
| Mast OD - in (mm) | 2.88 - 4.0 (73 - 102) |
Model Variants
- AM-1 Adjustable Mount – Elevation: 360° in fixed 15° increments
