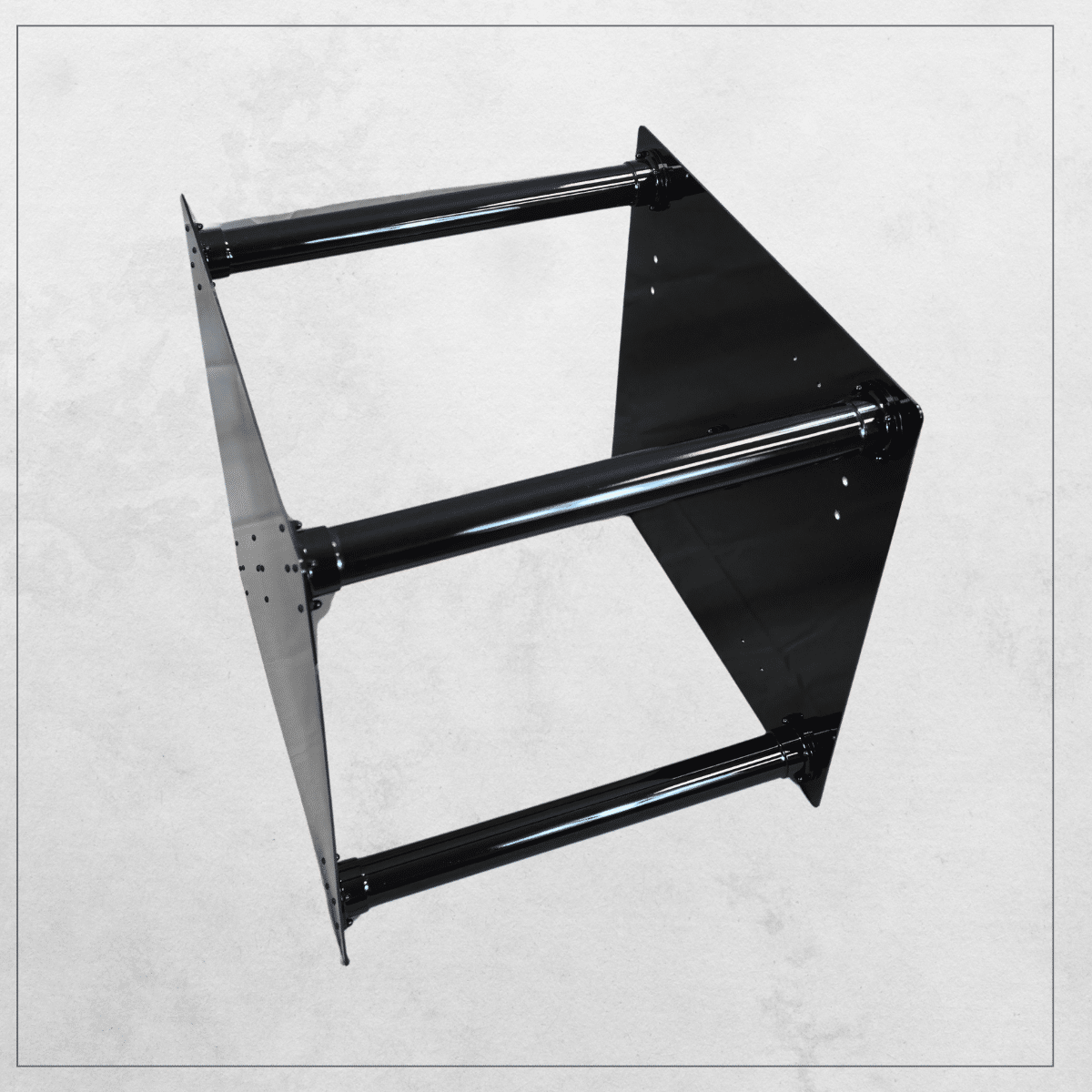

CP16005 Panel Antenna
The CP16005 Panel Antenna (134–185 MHz) is an RHCP underground communication antenna that delivers stable, orientation-independent coverage in mining shafts, reducing multipath interference and dead zones.
Description
The CP16005 Panel Antenna is a right-hand circularly polarized (RHCP) antenna designed for underground communication systems where reliability is critical. Operating in the 134–185 MHz frequency range, this mining panel antenna is engineered to overcome the challenges of multipath interference caused by reflections from metal surfaces, rock walls, and heavy machinery.
Unlike traditional linear-polarized antennas, the CP16005 uses circular polarization to maintain consistent signal integrity, minimize dead zones, and deliver orientation-independent communication. Its rugged construction ensures long-term durability in harsh mining environments, while its fixed installation design makes it a reliable choice for safety and communication efficiency underground.
This circular polarization antenna is ideal for mining companies seeking dependable performance, reduced downtime, and enhanced communication coverage in tunnels and shafts.
| General Specifications | |
|---|---|
| Model Name | CP16005 |
| Part Number | 99360501 |
| Antenna Type | Panel |
| Radiation Pattern | Directional |
| Colour | Black, Gloss finish (RAL 9005) |
| Compliances | RoHS, REACH |
| Markets | Mining & Tunneling, Oil & Gas, Defense & Security, Civil Infrastructure |
| Electrical Specifications | |
| Frequency (MHz) | 134 - 185 |
| Frequency Band | VHF |
| Gain - (dBic) | 5.5 @ 170 MHz |
| Polarization | RHCP |
| VSWR (Max) | 2:1 |
| Impedance (Ω) | 50 |
| Axial Ratio (dB) | 5.1 @ 145 MHz |
| Front/Back Ratio - Min. (dB) | 11 @ 162 MHz |
| HPBW (°) | 82 @ 162 MHz |
| Mechanical Specifications | |
| Length - in (mm) | 23.1 (587) |
| Weight - lbs (kg) | 16 (7.3) |
| Ground Plane Diameter - in (mm) | 23.8 x 23.8 (605 x 605) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 167 (-40 to 75) |
| Mounting Specifications | |
| Mount Type | Mast |
| Mast OD - in (mm) | 1.25 - 1.5 (32 - 38) |
