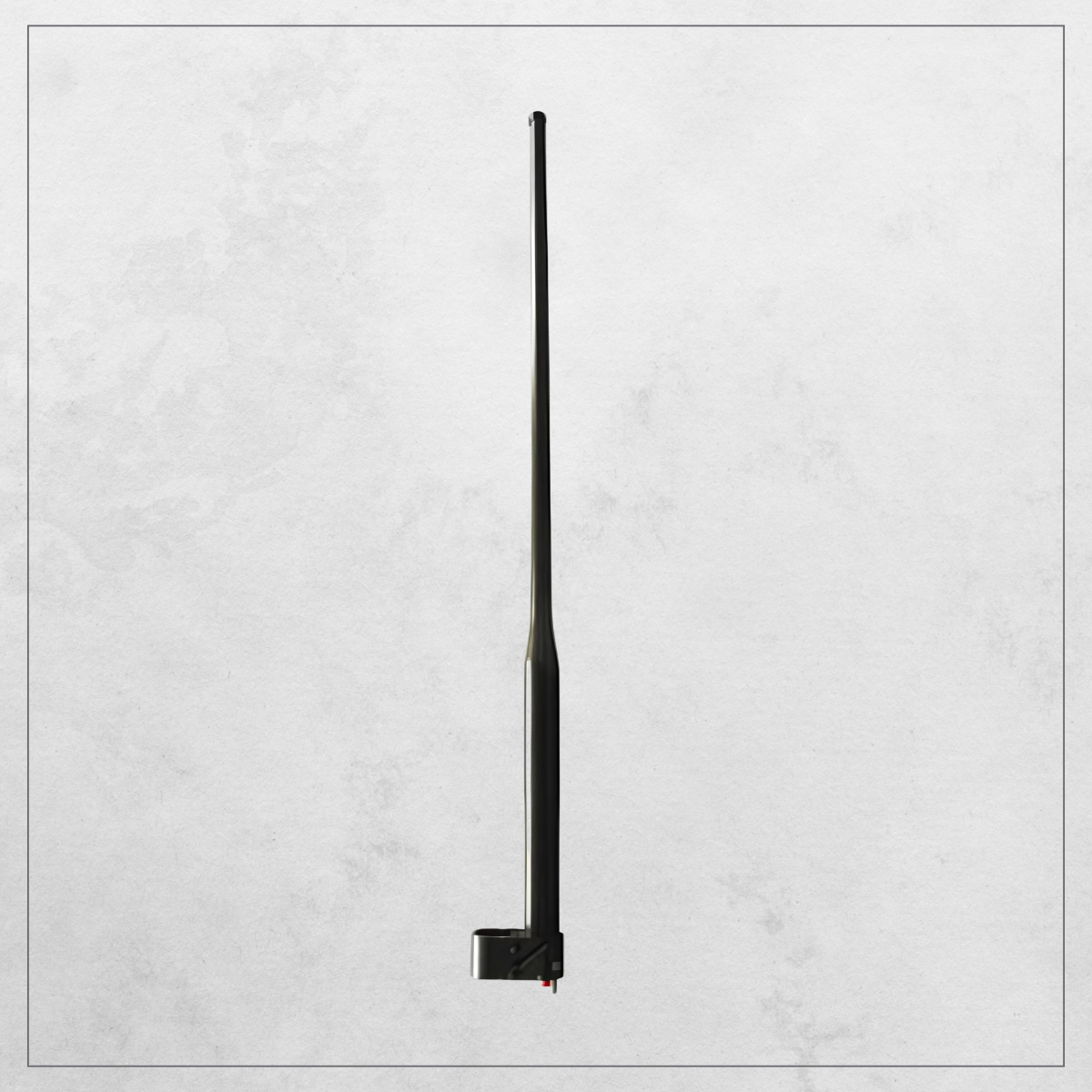

D2236 Dipole Antenna
The D2236 Dipole Antenna (400–470 MHz) delivers rugged, omni-directional UHF coverage with vertical polarization for military and land-based communications.
Description
The TACO D2236 Dipole Antenna is engineered for reliable UHF communication across the 400–470 MHz frequency band. Designed for defense, public safety, and ground-based systems, it offers 360° omni-directional coverage and vertical polarization for superior signal uniformity and minimal dead zones. Constructed from high-strength materials and enclosed in a fiberglass radome, the D2236 withstands corrosion, shock, and extreme weather, ideal for fixed installations, towers, and rugged field environments. This antenna combines TACO’s precision engineering and robust performance to meet the demands of mission-critical communication networks.
| General Specifications | |
|---|---|
| Model Name | D2236 |
| Part Number | 99153501 |
| Antenna Type | Dipole Antenna |
| Radiation Pattern | Omni-Directional |
| Enclosure | Wound Fiberglass Radome |
| Colour | Olive Drab (RAL 6022) |
| Compliances | RoHS, REACH |
| Markets | Military & Defence, Aviation & Air Traffic |
| Electrical Specifications | |
| Frequency (MHz) | 400-470 |
| Frequency Band | UHF |
| Gain - (dBi) | 6.5 |
| Polarization | Vertical |
| VSWR (Max) | 2:1 |
| Impedance (Ω) | 50 |
| UHF Max Input Power (W) | 250 |
| HPBW (°) | 22 |
| Mechanical Specifications | |
| Length - in (mm) | 93.4 (2372) |
| Weight - lbs (kg) | 18 (8.2) |
| Element Configuration | UHF |
| Number of Elements | 4 |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Wind Loading Area - ft² (m²) | 1.62 (.15) |
| Wind Loading Area with ½" Ice - ft² (m²) | 2.36 (.21) |
| Bend Moment (ft-lbs) | 165.3 |
| Bend Moment with ½" Ice (ft-lbs) | 61.1 |
| Survival Rating No Ice - mph (kph) | 150 (241) |
| Mounting Specifications | |
| Mount Type | Mount A - Clamp Mount |
| Mast OD - in (mm) | 3 (76) |
