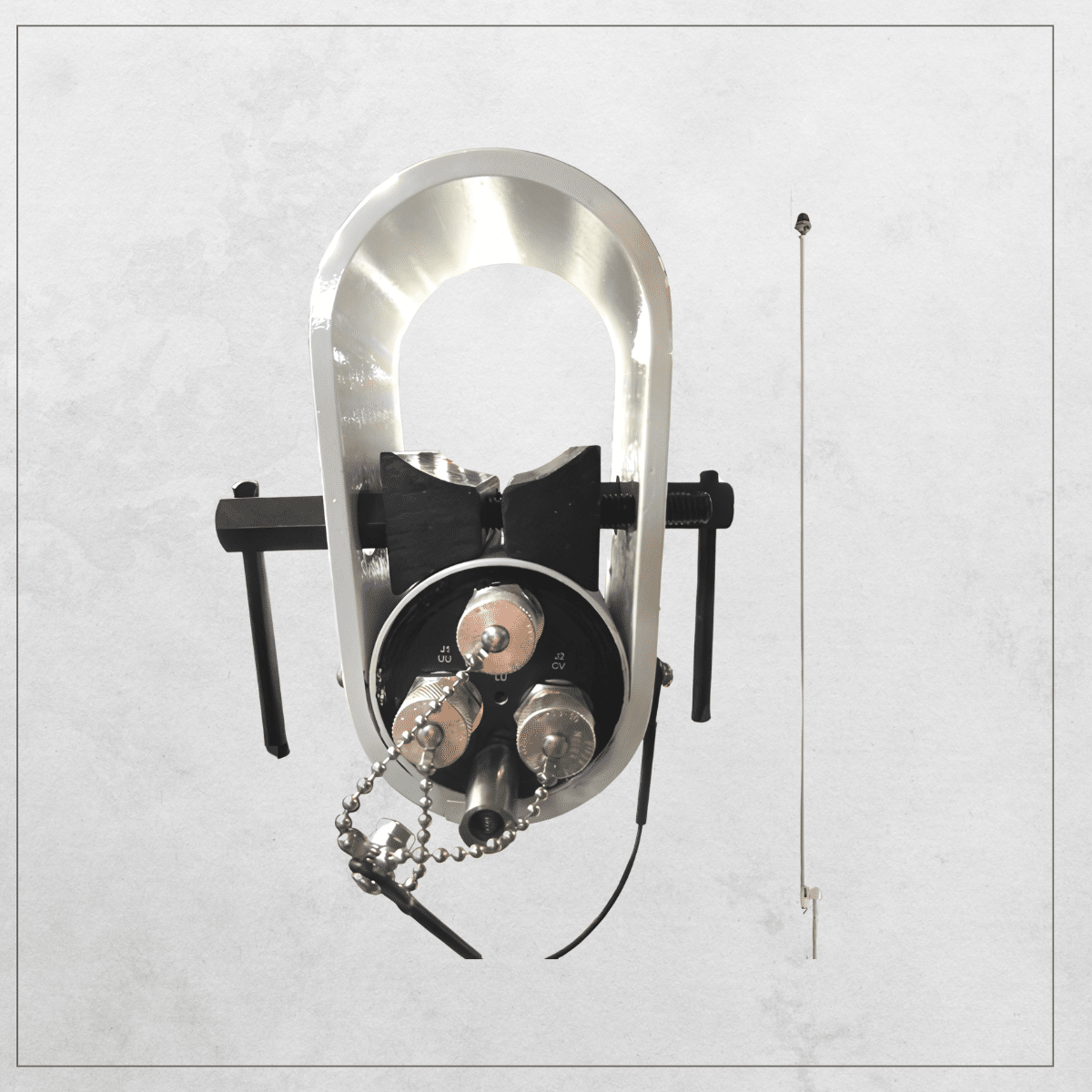

D2296-OL-LED-IR Dipole Antenna
The D2296-OL-LED-IR Dipole Antenna with an Infrared Obstruction Light is a rugged, military-grade omni-directional dipole, supporting dual VHF (116–150 MHz) and UHF (225–400 MHz) for secure, interference-free ground-to-air communications in covert and night operations.
Description
The D2296-OL-LED-IR Dipole Antenna is designed for critical ground-to-air communications in military, defense, and FAA-regulated air traffic control operations. It features an integrated infrared (IR) obstruction light, which enhances airspace safety and visibility during night operations and in covert environments where traditional obstruction lighting may not be appropriate.
Engineered for multi-band performance, theD2296-OL-LED-IR Dipole Antenna with Infrared Obstruction Light operates with two independent VHF outputs (116-150 MHz) and one UHF output (225-400 MHz), allowing for simultaneous and interference-resistant communication across multiple frequencies. Its 360-degree omnidirectional coverage provides secure and continuous connectivity between aircraft, ground stations, and command centers, making it an essential asset for military aviation, defense networks, and high-security installations.
Built to meet military specifications, this antenna is designed to withstand harsh environmental conditions, ensuring long-term reliability and high-performance communication in demanding operational settings.
| General Specifications | |
|---|---|
| Model Name | D2296-OL-LED-IR |
| Part Number | 45001605 |
| Antenna Type | Dipole Antenna |
| Radiation Pattern | Omni-Directional |
| Enclosure | Wound Fiberglass Radome |
| Colour | White (RAL 9003) |
| Compliances | ICAO Annex 14, Canadian Aviation Regulation (CAR) 621, FAA Approved, DGAC Mexico, IP66, NEMA 4X |
| Markets | Military & Defence, Aviation & Air Traffic |
| Electrical Specifications | |
| Frequency (MHz) | 116-150, 225-400 |
| Gain - (dBi) | 2 |
| Polarization | Vertical |
| VSWR (Max) | 2:1 |
| Impedance (Ω) | 50 |
| VHF Max Input Power (W) | 350 |
| UHF Max Input Power (W) | 250 |
| Isolation - Min. (dB) | 29.5 |
| HPBW (°) | 75 |
| Mechanical Specifications | |
| Length - in (mm) | 196.4 (4989) |
| Weight - lbs (kg) | 31 (14.1) |
| Element Configuration | VHF-UHF-VHF |
| Number of Elements | 3 |
| Connector Type | N-Type (Female) |
| Number of Connectors | 3 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Mounting Specifications | |
| Mount Type | Mount A - Clamp Mount |
| Mast OD - in (mm) | 3 (76) |
Model Variants
- D2296-OL-LED-EU Dipole Antenna – Standard LED Obstruction Light
- D2296-OL-LED Dipole Antenna – EU-Compliant LED Obstruction Light
