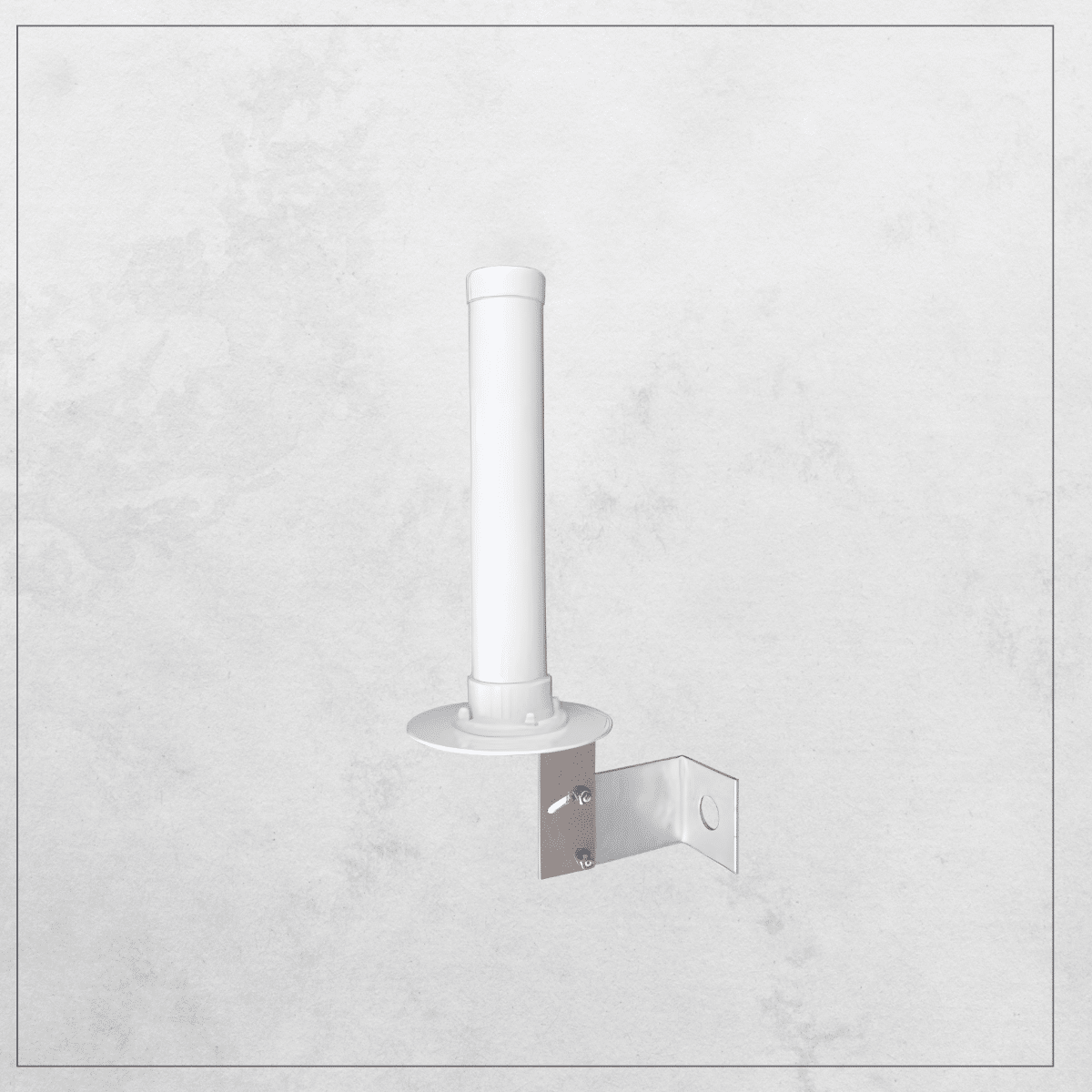

H1024-W Helical Antenna
The H1024-W is a high-performance 2.4 GHz helical antenna designed for mission-critical wireless communication in industrial and confined environments.
Description
The H1024-W Helical Antenna is a high-performance 2.4 GHz helical antenna designed for mission-critical wireless communication in industrial and confined environments. With a gain of 13.8 dBic, it provides enhanced signal strength, extended coverage, and improved penetration, making it ideal for Industrial IoT (IIoT) applications, automation systems, and real-time data transmission in challenging RF environments.
Its circularly polarized helical design minimizes interference from metallic surfaces, tunnels, and underground structures, ensuring clear and stable connectivity in settings such as industrial automation, mining, elevator shafts, and large warehouses. Engineered for long-term reliability, the H1024-W delivers superior RF performance in harsh conditions where standard antennas often struggle.
Built for IIoT networks, machine-to-machine (M2M) communication, and industrial automation, the H1024-W enables seamless connectivity between sensors, PLCs, and remote monitoring systems, ensuring secure and high-efficiency wireless operations in complex environments.
| General Specifications | |
|---|---|
| Model Name | H1024-W |
| Part Number | 99105501 |
| Antenna Type | Helical Antenna |
| Radiation Pattern | Directional |
| Enclosure | Polycarbonate Radome |
| Colour | White (RAL 9003) |
| Compliances | RoHS, REACH |
| Markets | Industrial & Mining IoT |
| Electrical Specifications | |
| Frequency (MHz) | 2400-2500 |
| Frequency Band | S-Band |
| Gain - (dBic) | 13.8 @ 2500 MHz |
| Polarization | RHCP |
| VSWR (Max) | 1.5:1 |
| Impedance (Ω) | 50 |
| Max Input Power (W) | 50 |
| Front/Back Ratio - Min. (dB) | 36 |
| HPBW (°) | 35 @ 2450 MHz |
| Mechanical Specifications | |
| Length - in (mm) | 13.1 (333) |
| Weight - lbs (kg) | 1.2 (0.5) |
| Ground Plane Diameter - in (mm) | 5.5 (140) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Mounting Specifications | |
| Mount Type | Mast or wall |
| Mast OD - in (mm) | 1.625 (41) |
Model Variants
- H1024-ASP Helical Antenna – RHCP with Anti-Static Coating
