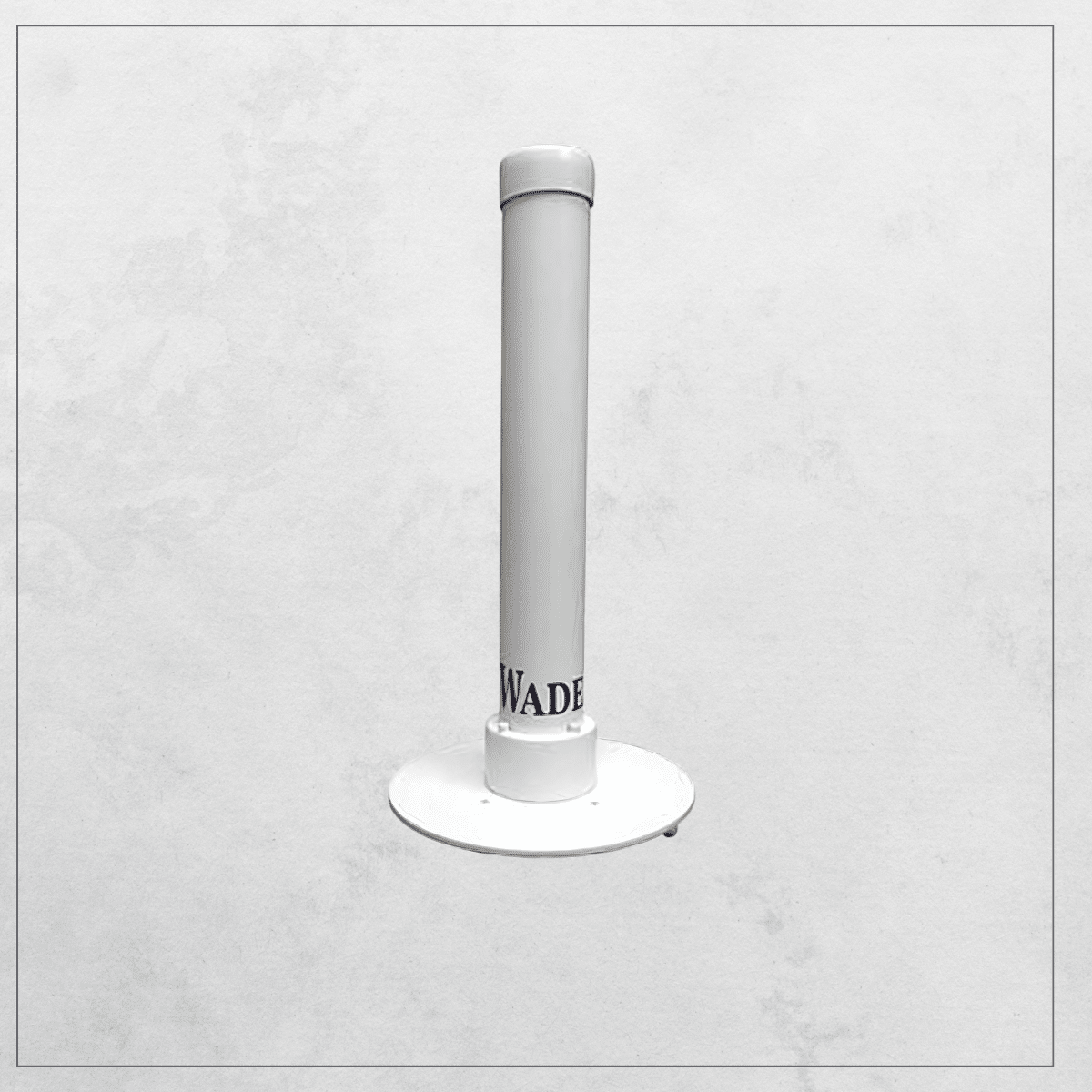

H2058-W Helical Antenna

The H2058-W Helical Antenna is a 5.8 GHz RHCP helical engineered for long-range, interference-resistant communications in industrial and harsh RF environments.

Add to Quote
Categories: , Tag:

Description

The H2058-W Helical Antenna is a high-performance antenna that features right-hand circular polarization (RHCP). It is specifically designed for long-range communication that is resistant to interference within the 5.8 GHz frequency band. With an impressive gain of 15 dBic, this antenna enhances signal strength, improves penetration, and extends coverage, making it ideal for applications in industrial automation, wireless security, and mission-critical communication networks.

Its circular polarization reduces multipath interference, ensuring stable and efficient transmission in environments with dense radio frequencies and reflective surfaces, such as urban areas, tunnels, and industrial facilities. Additionally, the H2058-W is built for rugged durability, allowing it to withstand harsh environmental conditions and ensuring long-term reliability for demanding wireless applications.

General Specifications
Model NameH2058-W
Part Number99190502
Antenna TypeHelical Antenna
Radiation PatternDirectional
EnclosurePolycarbonate Radome
ColourWhite (RAL 9003)
CompliancesRoHS, REACH
MarketsIndustrial & Mining IoT
Electrical Specifications
Frequency (MHz)5700-5850
Frequency BandISM
Gain - (dBic)15.0 @ 5850 MHz
PolarizationRHCP
VSWR (Max)1.5:1
Impedance (Ω)50
Max Input Power (W)25
Front/Back Ratio - Min. (dB)33
HPBW (°)28 @ 5780 MHz
Mechanical Specifications
Length - in (mm)12 (305)
Weight - lbs (kg)2 (0.9)
Ground Plane Diameter - in (mm)5.5 (140)
Connector TypeN-Type (Female)
Number of Connectors1
Environmental & Structural Specifications
Operating Temperature - °F (°C)-40 to 158 (-40 to 70)
Mounting Specifications
Mount TypeMast or wall
Mast OD - in (mm)1.625 (41)
