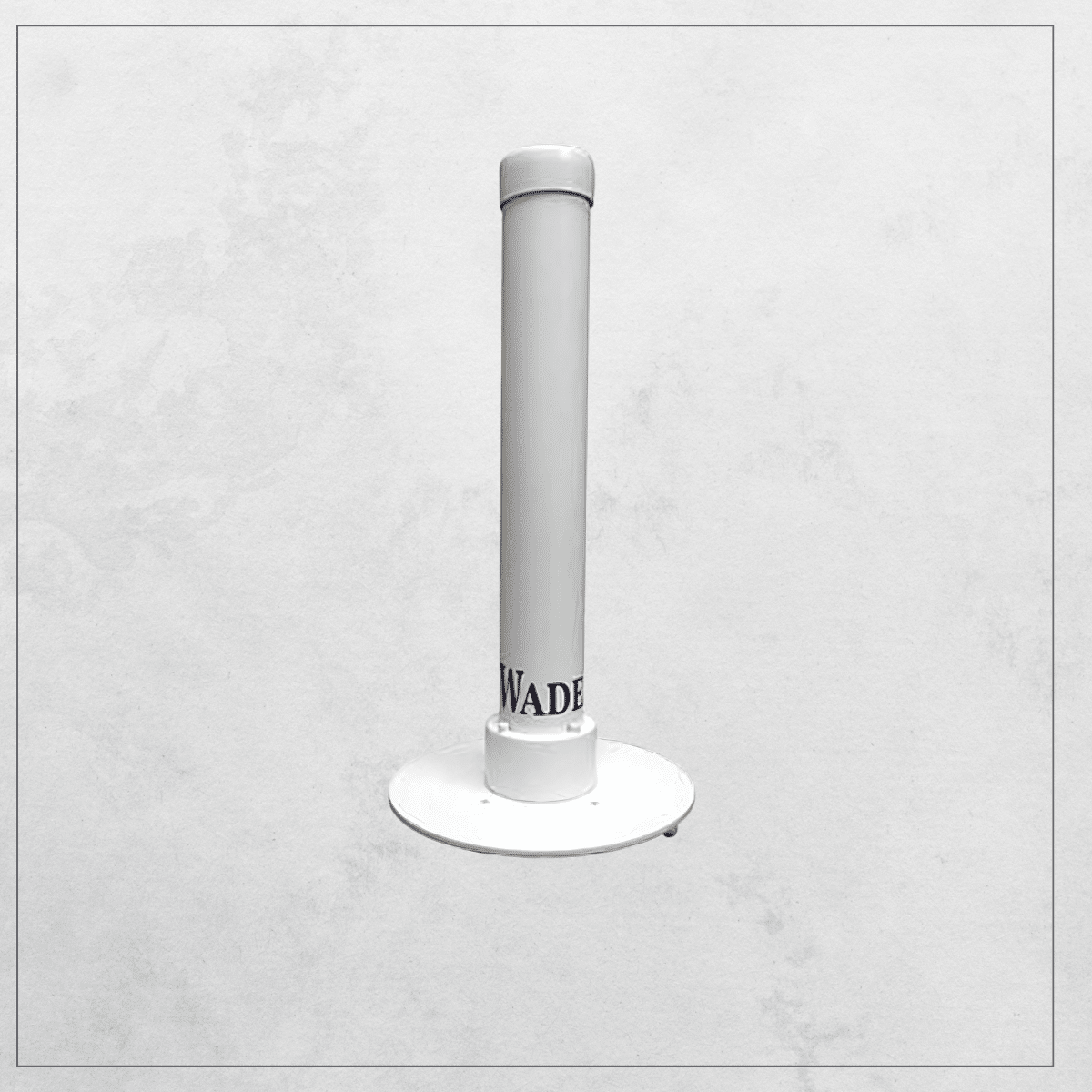

H2058-ASP Helical Antenna
The H2058-ASP Helical Antenna is a 5.8 GHz RHCP helical engineered for secure, interference-resistant communications in industrial and harsh RF environments.
Description
The H2058-ASP Helical Antenna is a high-performance helical antenna that features right-hand circular polarization (RHCP), specifically designed for secure and interference-resistant communication in the 5.8 GHz frequency band. With a gain of 15 dBic, this antenna offers an extended range, excellent signal clarity, and improved penetration, making it an ideal choice for applications in wireless security, industrial automation, and mission-critical communication networks.
Additionally, the H2058-ASP is coated with anti-static paint, providing enhanced protection against electrostatic discharge (ESD). This makes it suitable for use in electrically sensitive environments such as industrial facilities, mining operations, and defense applications. Its circular polarization helps to minimize multipath interference, ensuring consistent performance in RF-dense and reflective environments.
Built to endure harsh environmental conditions, the H2058-ASP is designed for rugged durability, ensuring long-term reliability for high-efficiency wireless applications.
| General Specifications | |
|---|---|
| Model Name | H2058-ASP |
| Part Number | 99190501 |
| Antenna Type | Helical Antenna |
| Radiation Pattern | Directional |
| Enclosure | Polycarbonate Radome |
| Colour | White, Anti Static coating |
| Compliances | RoHS, REACH |
| Markets | Industrial & Mining IoT |
| Electrical Specifications | |
| Frequency (MHz) | 5700-5850 |
| Gain - (dBic) | 15.0 @ 5850 MHz |
| Polarization | RHCP |
| VSWR (Max) | 1.5:1 |
| Impedance (Ω) | 50 |
| Max Input Power (W) | 25 |
| Front/Back Ratio - Min. (dB) | 33 |
| HPBW (°) | 28 @ 5780 MHz |
| Mechanical Specifications | |
| Length - in (mm) | 12 (305) |
| Weight - lbs (kg) | 2 (0.9) |
| Ground Plane Diameter - in (mm) | 5.5 (140) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Mounting Specifications | |
| Mount Type | Mast or wall |
| Mast OD - in (mm) | 1.625 (41) |
Model Variants
- H2058-W Helical Antenna – RHCP with Standard White Paint
