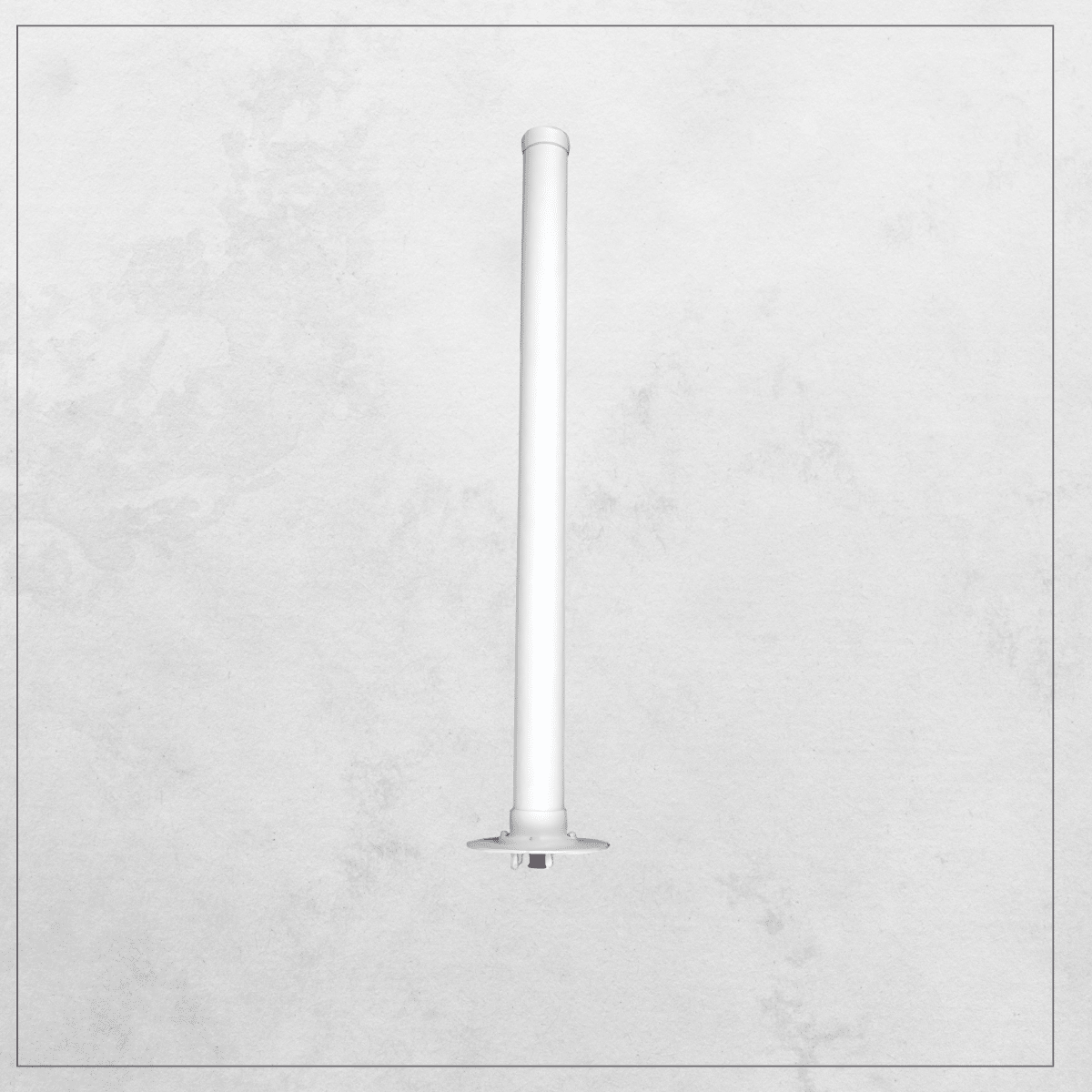

H2024-ASP Helical Antenna
The H2024-ASP Helical Antenna is optimized for 2.4 GHz mission-critical wireless communication, delivering reliable, interference-resistant performance in challenging RF environments.
Description
The H2024-ASP Helical Antenna is designed for mission-critical wireless communication in high-interference environments. Operating at 2.4 GHz with a gain of 17.4 dBic, this antenna offers extended range, superior signal clarity, and enhanced penetration, making it ideal for applications in defense, industrial automation, and secure wireless networks.
To ensure safe operation in hazardous environments, such as mining, aerospace, and industrial facilities, the H2024-ASP is equipped with anti-static paint to prevent electrostatic discharge (ESD) buildup. Its circular polarization reduces multipath interference, optimizing signal reliability in challenging conditions like tunnels, urban areas, and reflective RF environments.
Built for rugged durability, the H2024-ASP can withstand harsh environmental conditions, providing consistent, high-performance communication for mission-critical applications.
| General Specifications | |
|---|---|
| Model Name | H2024-ASP |
| Part Number | 99116504 |
| Antenna Type | Helical Antenna |
| Radiation Pattern | Directional |
| Enclosure | Polycarbonate Radome |
| Colour | White, Anti Static coating |
| Compliances | RoHS, REACH |
| Markets | Industrial & Mining IoT |
| Electrical Specifications | |
| Frequency (MHz) | 2400-2500 |
| Gain - (dBic) | 17.4 @ 2500 MHz |
| Polarization | RHCP |
| VSWR (Max) | 1.5:1 |
| Impedance (Ω) | 50 |
| Max Input Power (W) | 50 |
| Front/Back Ratio - Min. (dB) | 31 |
| HPBW (°) | 24 @ 2450 MHz |
| Mechanical Specifications | |
| Length - in (mm) | 30.1 (765) |
| Weight - lbs (kg) | 1.6 (0.7) |
| Ground Plane Diameter - in (mm) | 5.5 (140) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Mounting Specifications | |
| Mount Type | Mast or wall |
| Mast OD - in (mm) | 1.625 (41) |
Model Variants
- H2024-W Helical Antenna – RHCP with Standard White Paint
- H2024-ASP-LH Helical Antenna – LHCP with Anti-Static Coating
