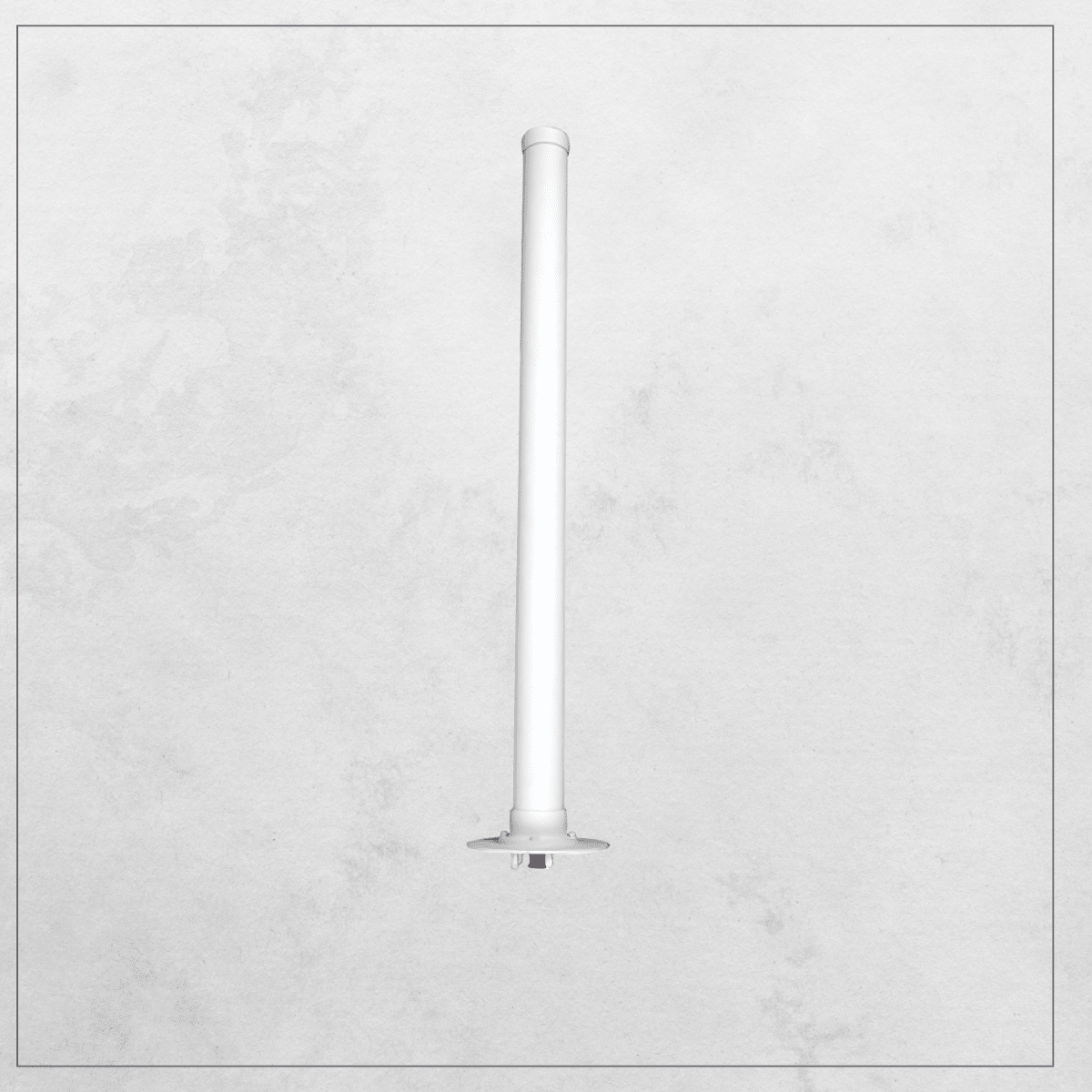

H2024-ASP-LH Helical Antenna
The H2024-ASP-LH is a high-gain, left-hand circularly polarized (LHCP) helical antenna designed for secure, interference-resistant communication. Operating within the 2.4-2.5 GHz frequency range.
Description
The H2024-ASP-LH Helical Antenna is a high-gain, left-hand circularly polarized (LHCP) antenna designed for secure, interference-resistant communication in industrial, military, and wireless networking applications. Operating within the 2.4-2.5 GHz frequency range, this antenna enhances signal strength, improves penetration, and minimizes multipath interference, making it ideal for high-reliability wireless networks, drone control, and industrial IoT operations. Its circular polarization ensures consistent performance in complex RF environments by reducing the impact of metallic reflections, tunnel structures, and multipath distortion.
Engineered for high-efficiency transmission and reception, the H2024-ASP-LH supports high-speed data links, mesh networks, and mission-critical communications in industrial automation, defense, and wireless security applications. Designed for durability in harsh environments, this antenna provides long-term reliability, robust RF performance, and secure connectivity in demanding operational settings.
| General Specifications | |
|---|---|
| Model Name | H2024-ASP-LH |
| Part Number | 99116501 |
| Antenna Type | Helical Antenna |
| Radiation Pattern | Directional |
| Enclosure | Polycarbonate Radome |
| Colour | White, Anti Static coating |
| Compliances | RoHS, REACH |
| Markets | Industrial & Mining IoT |
| Electrical Specifications | |
| Frequency (MHz) | 2400-2500 |
| Gain - (dBic) | 17.4 @ 2500 MHz |
| Polarization | LHCP |
| VSWR (Max) | 1.5:1 |
| Impedance (Ω) | 50 |
| Max Input Power (W) | 50 |
| Front/Back Ratio - Min. (dB) | 31 |
| HPBW (°) | 24 @ 2450 MHz |
| Mechanical Specifications | |
| Length - in (mm) | 30.1 (765) |
| Weight - lbs (kg) | 1.6 (0.7) |
| Ground Plane Diameter - in (mm) | 5.5 (140) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Mounting Specifications | |
| Mount Type | Mast or wall |
| Mast OD - in (mm) | 1.625 (41) |
Model Variants
- H2024-W Helical Antenna – RHCP with Standard White Paint
- H2024-ASP Helical Antenna – RHCP with Anti-Static Coating
