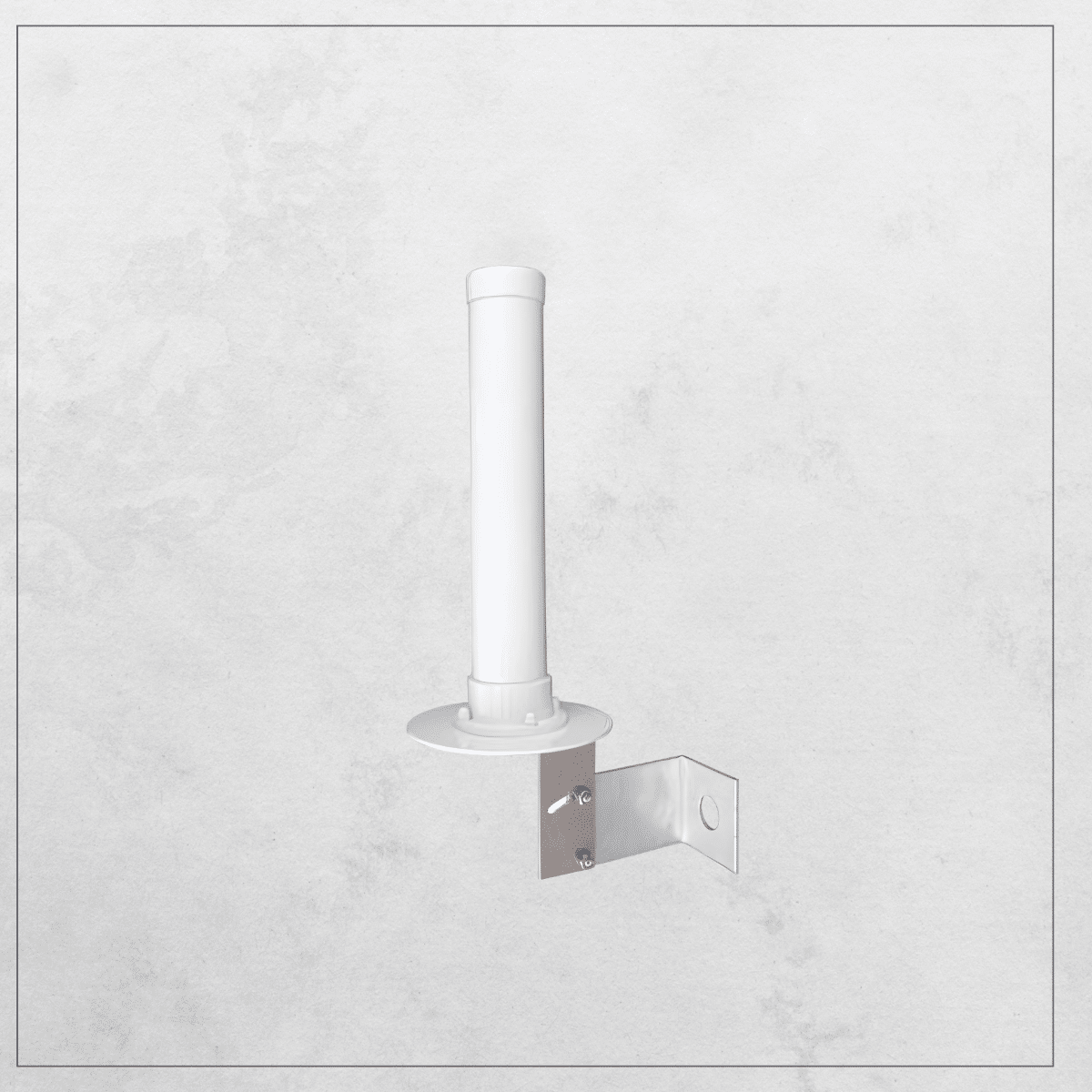

H1024-ASP Helical Antenna
The H1024-ASP Helical Antenna (2.4–2.5 GHz) delivers reliable wireless links in industrial and hazardous areas, with anti-static protection to mitigate ESD and ignition risk.
Description
The H1024-ASP Helical Antenna is a high-performance 2.4 GHz antenna designed for mission-critical wireless communication in industrial and hazardous environments. It features anti-static protection, which prevents the buildup of electrostatic discharge (ESD) and reduces the risk of ignition in flammable or dust-laden atmospheres. This makes it ideal for use in underground mining, oil and gas facilities, chemical plants, and explosion-prone environments.
Optimized for Industrial IoT (IIoT) applications, the H1024-ASP enables seamless connectivity between sensors, programmable logic controllers (PLCs), and automation systems. It supports real-time data exchange, predictive maintenance, and remote monitoring. Its circularly polarized helical design enhances signal penetration and stability, effectively reducing interference from metallic and reflective surfaces. This ensures consistent, high-reliability performance in tunnels, elevator shafts, warehouses, and confined industrial spaces.
Built for harsh operating conditions, this antenna offers long-term durability, superior RF performance, and secure wireless communication in environments where standard antennas may fail.
| General Specifications | |
|---|---|
| Model Name | H1024-ASP |
| Part Number | 99104501 |
| Antenna Type | Helical Antenna |
| Radiation Pattern | Directional |
| Enclosure | Polycarbonate Radome |
| Colour | White, Anti Static coating |
| Compliances | RoHS, REACH |
| Markets | Industrial & Mining IoT |
| Electrical Specifications | |
| Frequency (MHz) | 2400-2500 |
| Gain - (dBic) | 13.8 @ 2500 MHz |
| Polarization | RHCP |
| VSWR (Max) | 1.5:1 |
| Impedance (Ω) | 50 |
| Max Input Power (W) | 50 |
| Front/Back Ratio - Min. (dB) | 36 |
| HPBW (°) | 35 @ 2450 MHz |
| Mechanical Specifications | |
| Length - in (mm) | 13.1 (333) |
| Weight - lbs (kg) | 1.2 (0.5) |
| Ground Plane Diameter - in (mm) | 5.5 (140) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 1 |
| Environmental & Structural Specifications | |
| Operating Temperature - °F (°C) | -40 to 158 (-40 to 70) |
| Mounting Specifications | |
| Mount Type | Mast or wall |
| Mast OD - in (mm) | 1.625 (41) |
Model Variants
- H1024-W Helical Antenna – RHCP with Standard White Paint
